Specification:

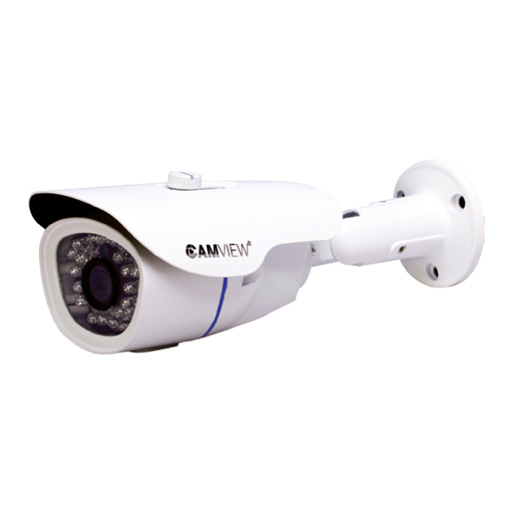

| Model | CV-AHG41S |
| Camera | |
| Image Sensor and DSP | 1/2.7″ Sony322 CMOS + NVP2441H DSP, Low Lux, 2.0Megapixel |
| Effective Pixels | 1920(H)×1080(V) |
| Electronic Shutter | 1/50s~1/100,000s |
| Video Frame Rate | 30fps@1080P |
| Mini. Illumination | 0.01Lux |
| Video Output | 1.0Vp-p/75Ω composite |
| Camera Features | |
| Max. IR LEDs Length | 30M |
| Day/Night | Auto(ICR) / Color / B/W |
| Noise Reduction | 2D |
| Lens | |
| Focal Length | Board Lens 3.6mm/F1.2 |
| Mount Type | M12 |
| General | |
| Power Supply | DC12V±10% |
| Power Consumption | Max 6W |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Ingress Protection | IP66 |
| Dimensions(W×D×H) | 86(W) x60(H) x55(D)mm |
| Weight | 400g |
