| Model | CV-AHD02G16N | |
| Channel Mode | DVR Mode | Support, Max 16ch TVI2.0/AHD/CVI @1080P/960P/720P; analog video real time input |
| Mixed Mode | Support, Max 16ch | |
| NVR Mode | Support, Max 16ch IPCAM video real time input | |
| Digital Channel (IPC) |
IP video input | Max 16ch 1080P, RJ45 interface |
| buit-in switch | No | |
| Protocol | ONVIF, N1 | |
| IPC Remote Setting | Time synchronization setting/ encoding setting color adjust/ Motion detection |
|
| Analog Channel | video input format | TVI 2.0 / AHD / CVI
(720P@25/30/50/60fps, 1080P@25/30fps), CVBS(960H@PAL/NTSC) |
| video encoding resolution | 1080P-H(960×1080)/720P@12fps; 960H@20fps; D1@25fps |
|
| video encoding rate | 512 Kbps ~ 4Mbps | |
| UTC | support 16ch | |
| Audio input | support 2ch(16CH optional) | |
| Audio encoding | G.711 | |
| Video output | HDMI output | 1 CH, HDMI Interface; Max Resolution: 1920×1080/60Hz |
| CVBS output | optional | |
| VGA output | 1 CH, VGA Interface; Max Resolution: 1920×1080/60Hz | |
| Audio output | Audio output | RCA Audio output *1, HDMI Audio output |
| Playback | Stream type | AV stream/video stream |
| Video Compression | H.264 | |
| audio Compression | G.711 | |
| Recording | DVR mode: 16CH 720P/1080p-h Recording Mixed mode or NVR mode: 16CH 720P/1080P-h Recording or 16CH 1080P Recording |
|
| Playback | DVR mode: ４ CH 720P/Half-1080P Playback Mixed mode or NVR mode: ４ CH 1080P Playback |
|
| Double stream | Support | |
| Web access | Support (Live.camview.co.id) | |
| PC client | Support (Camview Smart) | |
| Mobile phone client | Support (Camview Smart) | |
| Hard disk drive | Storage Type | 2 * SATA Interface (4sata optional) |
| Storage Capacity | 6TB/ HDD in Max | |
| Backup | USB Backup & Internet Backup | |
| External interface | Network Interface | RJ45 10M / 100M Internet Interface |
| USB Interface | 2 * USB2.0 Interface(Support Upgrade, Backup, Mouse) | |
| Alarm interface | Optional: 4 in 1 out | |
| Serial Interface | 1 * RS485 Interface | |
| Other | Temperature | -10℃ – 55℃ |
| Operation System | Embedded Linux | |
| Soft Power-Off | Support | |
| Device Control | Remote Control & Mouse & Front plant | |
| Power Input | DC +12 V / 4A | |
CV-AHD02G16N

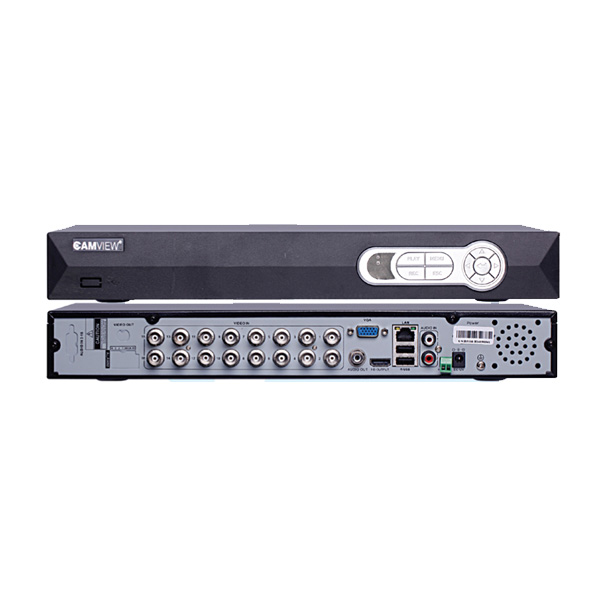

16CH 5-In-1 Hybrid DVR CV-AHD02G16N
Support AHD/TVI/CVI/CVBS/IP series front-end real-time encoding;
Support VGA/HDMI HD output;
Support “CamView Smart” Cloud technology, easy to achieve a variety of network penetration, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate;
Support various mobile monitoring: iOS, Android;
Support multiple web browsers (IE, Chrome, Firefox, Safari);
Support more than 20 languages, no nation boundaries;
Perfect protection circuit, unique triple watchdog function
Supporting web, CMS, center platform management software ODM, provide SDK development.
